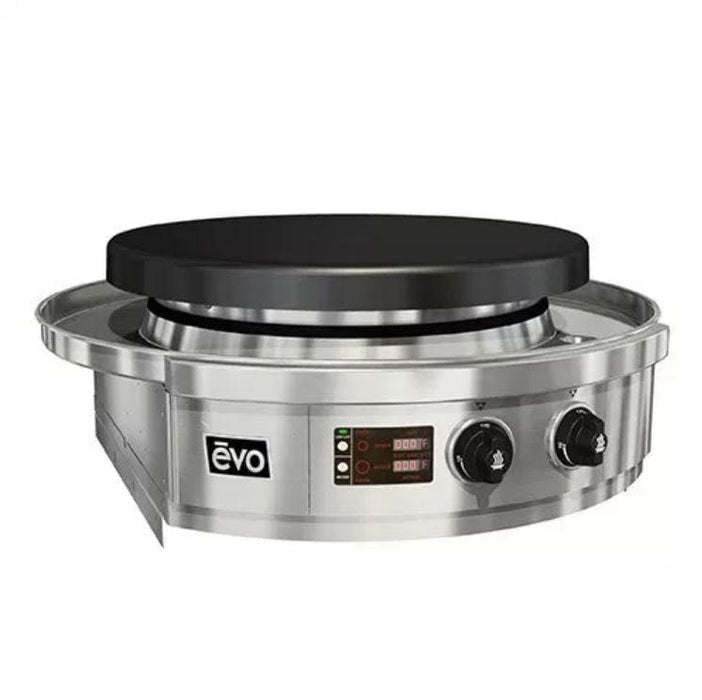

The Evo Affinity 25E Cooktop is designed for indoor residential kitchens. An extremely capable cooking appliance, the Affinity 25E is ideal for warming, holding foods, and for low-to-high temperature preparations. Foods can be prepared directly on the cook surface and indirectly using and pots and pans like traditional stove top cooking.
The 25E has a 25” (635mm) diameter black seasoned steel cook surface heated underneath by a single dual-zone electric heater. Evo’s technology allows independent heat adjustment across inner and outer cook surface zones for managing a wide range of menu possibilities. Electric heaters deliver heat to each cook surface zone via separate inner and outer control knobs. Individual temperature monitoring is digitally displayed for each zone. Surface temperatures range from 150ºF to 525ºF (66ºC to 274ºC) from the center to the outside edge without the hot spots and temperature problems associated with traditional square griddles. The heater system is electronically controlled and engaged with an On/Off button.

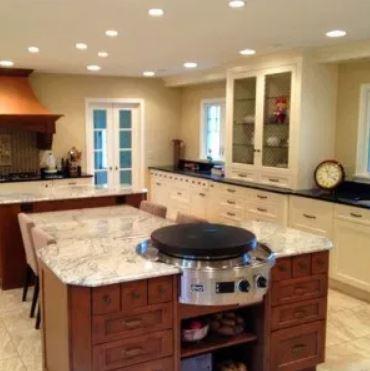

The LCD display shows inner and outer set temperatures that correspond to each respective analog knob position. A display icon illuminates whenever a heater becomes active. A Mode selector displays actual momentary temperature at both inner and outer cook surface zones. A Hot Surface warning indicator illuminates when surface temperatures are above 150F (66ºC). Operating on 208V-230V, the Affinity 25E Cooktop is the perfect centerpiece for any kitchen. For indoor social cooking spaces, try designing your Evo into your kitchen island.
Features:
|
|
Designed for Indoor Kitchen Islands:
|
|
Easy Operation, Easy Maintenance, Easy Cleanup:
|
|
All Evo Grills Ship with:
|
|
Specifications:
Connection Type: | 3-Wire Conduit w/ #10 Ground Wire |
Number of Main Burners: | 2 |
Cooking Surface: | 25" |
Voltage: | 208V - 230V |
Amps: | 30 |
Warranty: | One Year Limited Warranty |
Dimensions:
Height: | 11 3/8" |
Width: | 32 3/16" |
Diameter: | 25" |
Weight: | 128 lbs |
Documents:
Brochure: | Link |
Owner & Installation Manual: | Link |
Spec Sheet: | Link |
Trim Kit Datasheet: | Link |
Trim Kit Installation Guide: | Link |
