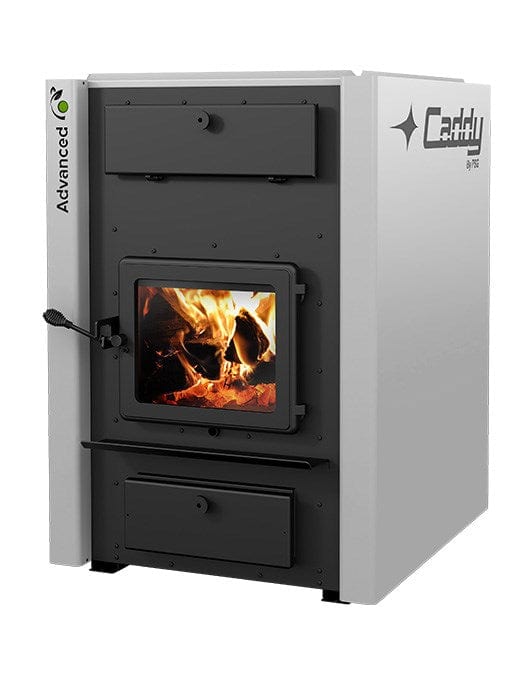

From a family of great furnaces, the Caddy Advanced is a furnace whose performance, innovative design is only surpassed by its ease of use.
The self-regulating combustion of the Caddy Advanced promises constant heat, while requiring minimal effort on your part; just fill the furnace, adjust the temperature and enjoy the heat for hours! The system automatically adjusts the air supply so that combustion is optimized and synchronized with the thermostatic demand.
Use the Caddy Advanced with confidence thanks to its intuitive operation and illustrated quick user guide. Equipped with a glass door allowing you to easily monitor the state of combustion, the furnace optimizes its combustion cycle: you will spend much less time taking care of it vs a conventional furnace (loading wood, adjusting the air, etc.). This optimization also ensures you substantial savings in firewood as well as increased comfort thanks to the production of constant heat throughout the combustion cycle.
Among the most efficient furnaces in terms of energy distribution, the Caddy Advanced has one of the lowest minimum burn rates in the industry. This means a load of wood burns longer, and therefore reduces the frequency of wood loading. Emissions on this unit are amongst the cleanest of the few EPA 2020 certified furnaces, and yet the Caddy Advanced is among the most energy efficient on the market. In addition, the new ECM motor blower option consumes 40% less electricity (and much quieter) than a standard PSC motor blower.
Features:
-
Economy: The Caddy series furnaces features advanced wood combustion, thus easily reaching up to a 30% reduction in fuel wood used. EPA certified or CSA B415.1-10 tested wood furnaces are 80% to 90% efficient, compared with 40% to 60% for conventional units.
-
Flexibility: With the Caddy series furnaces you will never again be dependent on a single source of energy to guarantee the comfort and safety of your family. Depending on the model, you can add an electric element, an oil unit or use it as a wood add-on to an existing furnace.
| -
Comfort: All of the Caddy series furnaces are controlled by a wall thermostat that gives you the exact comfort level you want for your home and all the protection you need from winter's icy blasts! Whether or not you are present, your home will be comfortable without interruption.
-
Durability: Caddy furnaces are built to last with high-quality materials, including a 3/16” thick steel firebox, C-Cast baffle, high-density refractory bricks, and a cast iron door with ceramic glass. These durable components ensure reliable performance and long-term efficiency.
|
Specifications:
| Fuel Type: | Dry Cordwood (21" Length) |
| Heating Area: | 1000 - 2500 sq. ft. |
| Firebox Volume: | 3.6 sq. ft. |
| Maximum Burn Time: | 10 Hours |
| Maximum Input Capacity: | 310,000 BTUs |
| Overall Heat Output Rate: | 19,354 BTU (5.6 kW)
47,052 BTU (13.8 kW) |
| Average Overall Efficiency: | 76.6% HHV
82.0% LHV |
| Delivered Heat Output Rate: | 13,297 BTU (3.9kW)
42,234 BTU (12.4 kW) |
| Average Delivered Efficiency: | 60.7% (HHV)
68.3% (LHV) |
| Optimum Efficiency: | 83.2% |
| Average CO: | 8.78 lb/mmBTU (3.78 g/MJ) |
| Average Electrical Power Consumption: | 360 W |
Unit Dimensions:
| Height: | 41-1/4" |
| Width: | 29-1/4" |
| Depth: | 41-1/2" |
