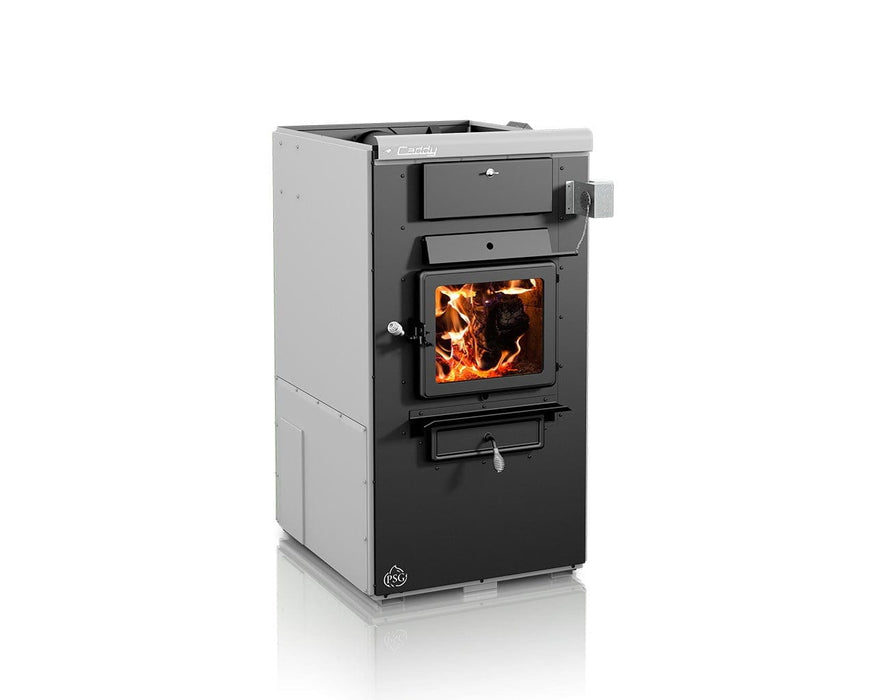

Advanced combustion technology and state-of-the-art design have earned the Caddy furnace a reputation as the cleanest, most efficient furnace ever produced by PSG—and with good reason! So how do you make a star product even better? With performance-enhancing electronics that take our flagship furnace to the next level.
The electronic components and controls of the newly redesigned Caddy have been reduced to just three components for greater ease of use and efficiency: Integrated PC Board & RTD Probe / Blower Assembly equipped with a prewired main power board / Touch-screen LCD Control Module
The secret behind the Caddy's outstanding performance is its built-in heat exchanger system, which ensures that heat is transferred quickly and efficiently via the smoke ducts inside the furnace instead of being lost up the chimney. It uses up to 30% less firewood and reduces particulate emissions by as much as 80%. That's great news for your heating bill—and the environment!
With Caddy series furnaces, you'll always have an alternate source of heat to ensure the comfort and safety of your family. The Caddy comes in four different configurations: wood-only, wood+electric combo, wood+oil combo, and wood add-on furnace.
Features:
-
Economy: The Caddy series furnaces features advanced wood combustion, thus easily reaching up to a 30% reduction in fuel wood used. EPA certified or CSA B415.1-10 tested wood furnaces are 80% to 90% efficient, compared with 40% to 60% for conventional units.
-
Flexibility: With the Caddy series furnaces you will never again be dependent on a single source of energy to guarantee the comfort and safety of your family. Depending on the model, you can add an electric element, an oil unit or use it as a wood add-on to an existing furnace.
| -
Comfort: All of the Caddy series furnaces are controlled by a wall thermostat that gives you the exact comfort level you want for your home and all the protection you need from winter's icy blasts! Whether or not you are present, your home will be comfortable without interruption.
-
Durability: Caddy furnaces are built to last with high-quality materials, including a 3/16” thick steel firebox, C-Cast baffle, high-density refractory bricks, and a cast iron door with ceramic glass. These durable components ensure reliable performance and long-term efficiency.
|
Specifications:
| Fuel Type: | Dry Cordwood (22" Length) |
| Heating Area: | 1000 - 2500 sq. ft. |
| Firebox Volume: | 3.6 sq. ft. |
| Maximum Burn Time: | 15 Hours |
| Maximum Input Capacity: | 310,000 BTUs |
| Overall Heat Output Rate: | 15,436 BTU (4.5 kW)
49,638 BTU (14.5 kW) |
| Average Overall Efficiency: | 76.7% HHV
82.9% LHV |
| Delivered Heat Output Rate: | 12,635 BTU (3.7kW)
44,857 BTU (13.1 kW) |
| Average Delivered Efficiency: | 62.7% (HHV)
68.3% (LHV) |
| Optimum Efficiency: | 84.9% |
| Average CO: | 11.18 lb/mmBTU (4.81 g/MJ) |
| Average Electrical Power Consumption: | 432 |
Unit Dimensions:
| Height: | 49" |
| Width: | 32-1/4" |
| Depth: | 52-7/8" |
Documents:
| Brochure: | Link |
| Owner's Manual: | Link |
| Optional Oil Unit Manual: | Link |
