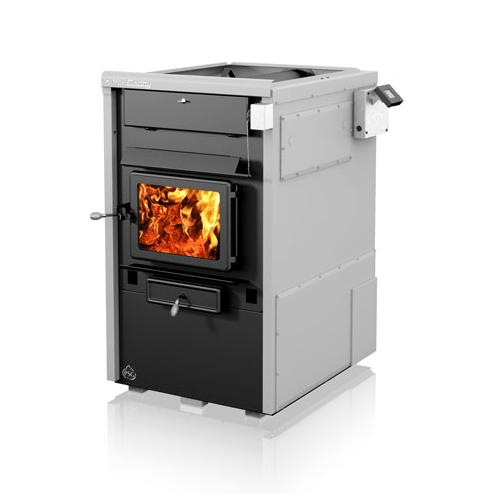

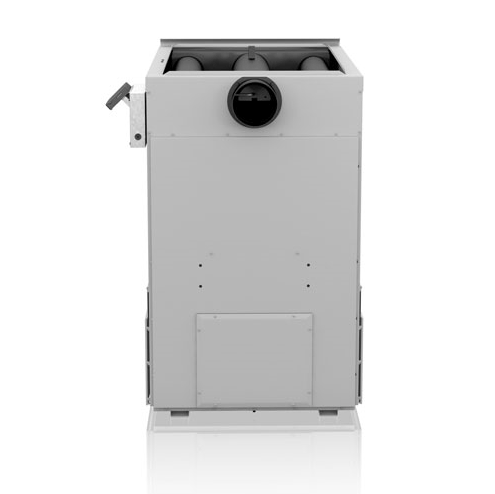

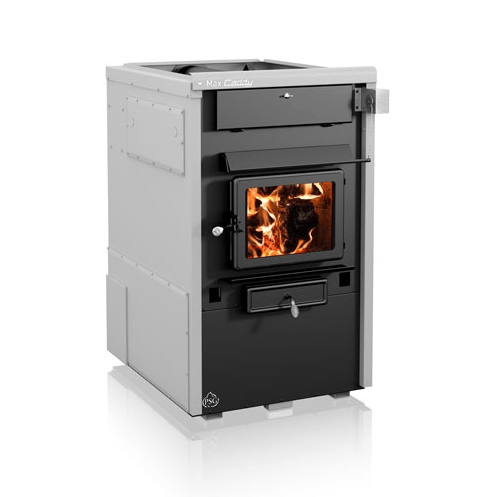

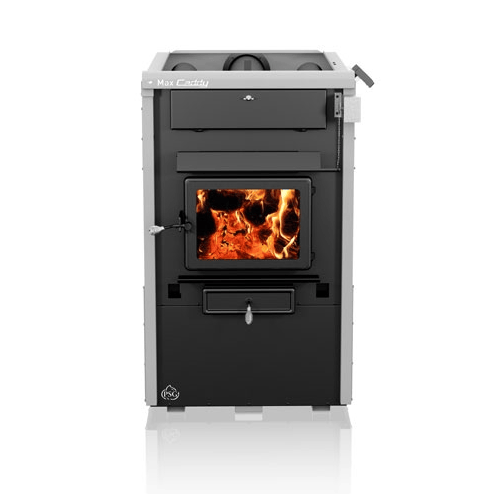

PSG's largest furnace is now even smarter, with a electronic platform that facilitates intersystem connections and makes the Max Caddy a natural choice as a core component of your whole home heating and cooling system.
Max Caddy's new streamlined electronic platform makes it easy for different systems to talk to each other. Heat pumps, air conditioners, humidifiers—the Max Caddy easily communicates with all of these appliances using standard industry symbols and practices. Easy-to-identify input and output ports and a blower assembly with prewired main board simplify installation and hookup. And PSG's touch-screen LCD control module makes input and output control a breeze.

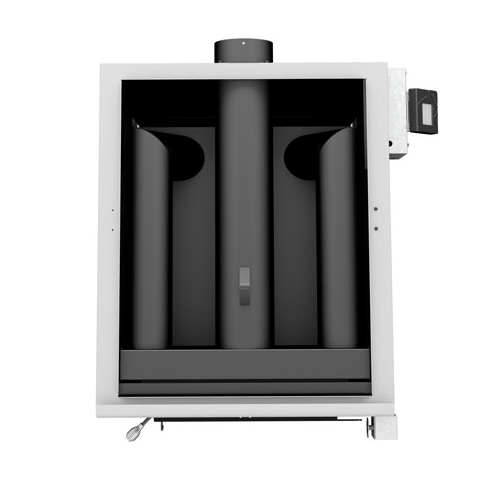

The Max Caddy's integrated control PC board and RTD probe automatically ensures that the furnace blower is operating at optimum speed, keeping the plenum at just the right temperature. The built-in heat exchanger system ensures that heat is transferred quickly and efficiently via the smoke ducts inside the furnace instead of being lost up the chimney. The result is superior comfort and energy efficiency, with savings of up to 30% on firewood and reductions in particulate emissions up to 80%.
The Max Caddy can be installed as a wood-only unit, but is also available in wood+electric, wood+oil combo, or even wood+oil+electric triple combo configurations so you can heat your home using multiple energy sources. With Caddy series furnaces, you'll always have an alternate source of heat to ensure the comfort and safety of your family.
Features:
-
Economy: The Caddy series furnaces features advanced wood combustion, thus easily reaching up to a 30% reduction in fuel wood used. EPA certified or CSA B415.1-10 tested wood furnaces are 80% to 90% efficient, compared with 40% to 60% for conventional units.
-
Flexibility: With the Caddy series furnaces you will never again be dependent on a single source of energy to guarantee the comfort and safety of your family. Depending on the model, you can add an electric element, an oil unit or use it as a wood add-on to an existing furnace.
| -
Comfort: All of the Caddy series furnaces are controlled by a wall thermostat that gives you the exact comfort level you want for your home and all the protection you need from winter's icy blasts! Whether or not you are present, your home will be comfortable without interruption.
-
Durability: Caddy furnaces are built to last with high-quality materials, including a 3/16” thick steel firebox, C-Cast baffle, high-density refractory bricks, and a cast iron door with ceramic glass. These durable components ensure reliable performance and long-term efficiency.
|
Specifications:
| Fuel Type: | Dry Cordwood (25" Length) |
| Heating Area: | 1000 - 2500 sq. ft. |
| Firebox Volume: | 4.9 sq. ft. |
| Maximum Burn Time: | 17 Hours |
| Maximum Input Capacity: | 421,000 BTUs |
| Overall Heat Output Rate: | 18,424 BTU (5.6 kW)
66,576 BTU (19.6 kW) |
| Average Overall Efficiency: | 78.9% HHV
85% LHV |
| Delivered Heat Output Rate: | 16,109 BTU (4.7kW)
54,578 BTU (16.0 kW) |
| Average Delivered Efficiency: | 64.8% (HHV)
70.2% (LHV) |
| Optimum Efficiency: | 85.8% |
| Average CO: | 12.20 lb/mmBTU (5.25 g/MJ) |
| Average Electrical Power Consumption: | 360 |
Unit Dimensions:
| Height: | 50-1/2" |
| Width: | 36-1/4" |
| Depth: | 60-1/8" |
