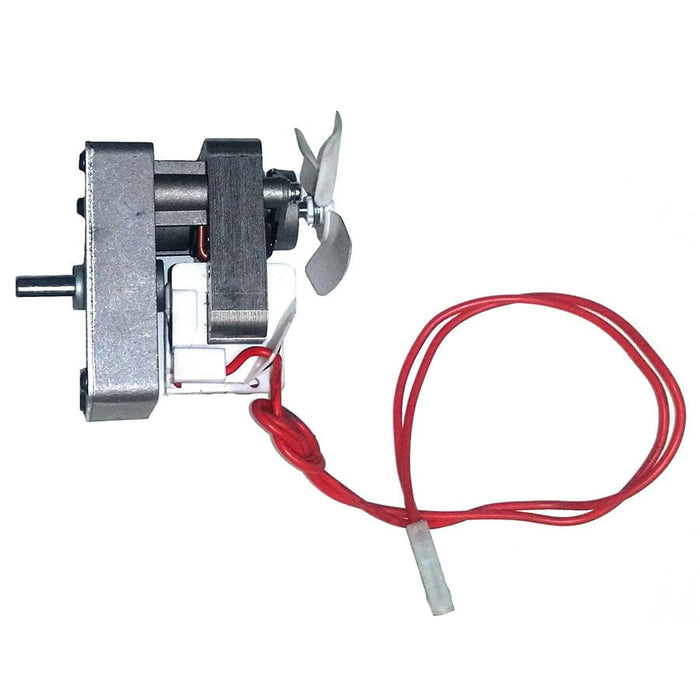

Pit Boss Auger Motor (PB 2 RPM Series) - 70102

SKU 70102
$75.00 - $75.00
$75.00
$75.00 - $75.00
$75.00

Replacement Auger Motor for Pit Boss 2 RPM Series

Instructions:

  • Unplug your unit from the power supply
  • Remove the service door under the hopper
  • Disconnect the wires of the temperature probe, igniter, fan and motor respectively
  • Remove the setting screw for the ground wire, and then unplug the power cord from the bracket
  • Remove four screws in front and back of hopper, and then remove the hopper completely
  • Remove the screws and auger motor, then replace with the new
  • Reinstall and lock the hopper
  • Pass the power cord through hole 1 and then lock the ground wire
  • Connect the wires and secure them
  • Reinstall the service door under the hopper
