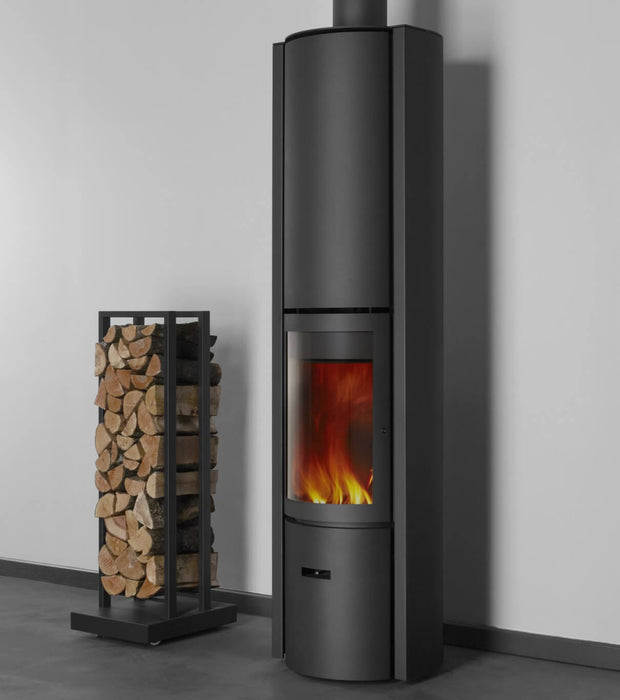

Stûv 30. Modern and revolutionary.
The Stuv 30's are slow burning wood stoves that offer many possibilities: Efficient heating, 360 degree rotation and even the occasional BBQ.
Three doors / three modes of operation / three ways to enjoy it
The Stuv 30's have three doors to offer you a multitude of benefits. The loading door allows the quick and easy add-on of logs and the occasional BBQ. The full glass door offers a spectacular view of the fire as it warms the atmosphere. The full door radiates comforting warmth throughout the night.
360° rotation
The Stûv 30 has a minimalist design and can also be rotated 360° to face the desired direction.
Versatility and efficiency
Stûv 30 wood stoves provide a perfect balance between pleasure and performance. Heating adapted to today's buildings and atmosphere at will.
Practical and user-friendly accessories
Fire screen, mobile log rack and even a BBQ grill to make it feel like summer all year round.
Features:
-
Mobile Smoke Deflector: The mobile deflector of the Stûv 30 opens and closes when the door is rotated to change the operating mode. When the door is in "open fire" mode or when the Stûv 30 is rotating, the deflector opens, allowing the smoke to escape, thus avoiding backflow into the room. When the drum is stopped on the glass door or on the solid door, the deflector closes again to prevent the smoke from being evacuated quickly, thus ensuring a second combustion of the gases.
-
Removable Ash Pan: Two grates located at the bottom of the Stûv 30 combustion chamber allow the ashes to be evacuated into a receptacle under the wood stove. The Stûv 30's removable ash pan makes handling the ashes quick and easy.
-
Double-Walled Siding: The double-walled facings at the back of the Stûv 30 are used to release heat into the room but also act as insulation. These double walls make it possible to install a wood stove like the Stûv 30 only 8 inches from any combustible material.
| -
Rotation Up To 360 Degrees: The Stûv 30's have the ability to rotate up to 360°. The rotation of the unit is determined by it’s location into the room and can be adjusted by 15° increments.
-
Integrated Outdoor Air Intake Connector: This connector located under the Stûv 30 is a 9.5" space that allows the outside air to be connected directly from the outside of the house to the combustion chamber. A silicone seal completes the connector, making this installation airtight.
|
Specifications:
| Fuel Type: | Wood |
| Max Vertical Log Length: | 16" |
| Max Horizontal Log Length: | 10" |
| Efficiency: | 73.9% |
| Maximum Power: | 47,000 BTUs |
| EPA Power: | 17,049 BTUs |
| Nominal Heat Output: | 33,000 BTUs |
| Heating Surface Area: | 900 sq. ft. |
| Combustion Chamber: | 1.1 cu. ft. |
| Fine Particle Emissions: | 1.82 g/h |
| Doors: | Standard 3 Doors |
Unit Dimensions:
| Height: | 70-7/8" |
| Width: | 18-3/8" |
| Depth: | 17-5/8" |
| Weight: | 340 lb. (+330 lb.) |
Documents:
| Brochure: | Link |
| Installation Manual: | Link |
| Technical Sheet: | Link |
